SYNTEC Control System Large Model 5 Axis CNC Horizontal Machining Center HMX-8 for Mold Manufacturing Industry
- Model: HMX-8
- XYZ Axis Travel: 1600/1600/1200mm
- B Axis Travel: 0-360°
- C Axis Travel: -110~45°
- Spindle Power: 26KW

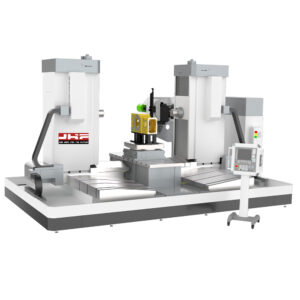

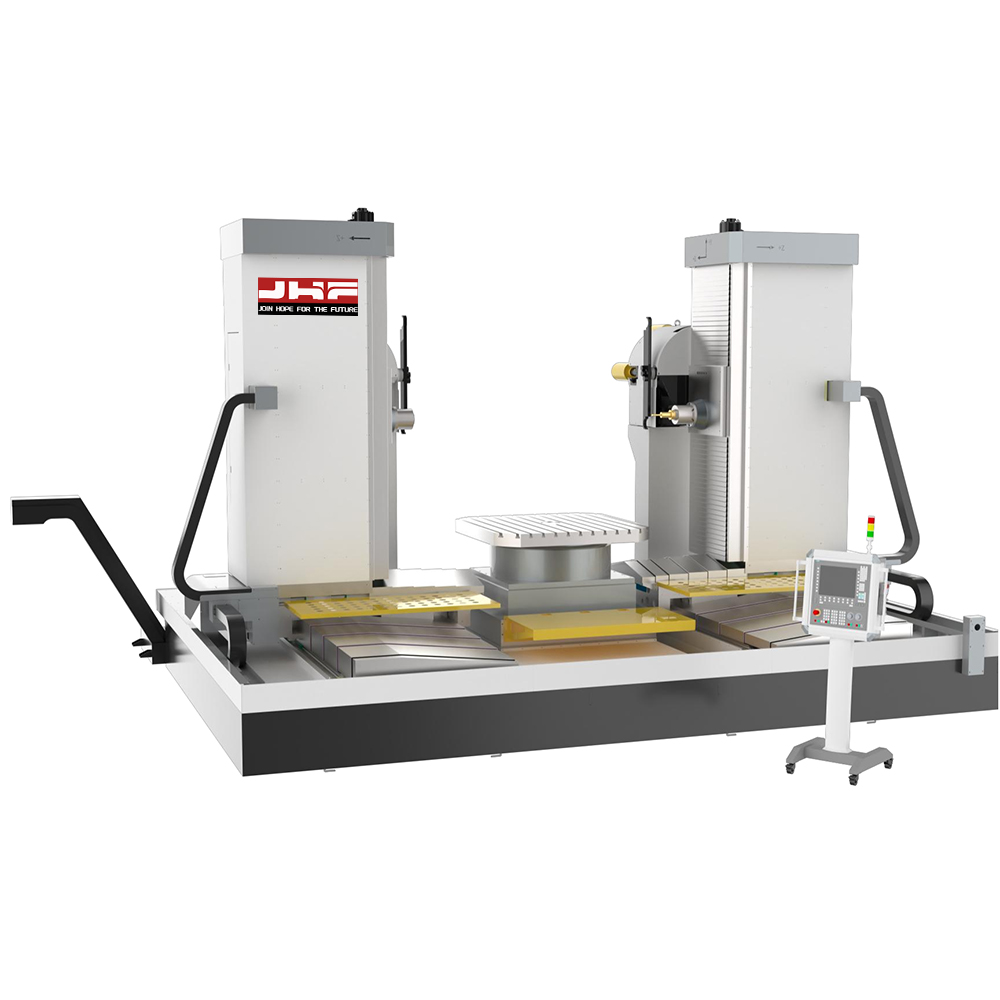

Moving-column horizontal machining center delivers superior stability and flexibility. Ideal for large, multi-sided heavy-duty precision machining. Maximizes productivity and accuracy.

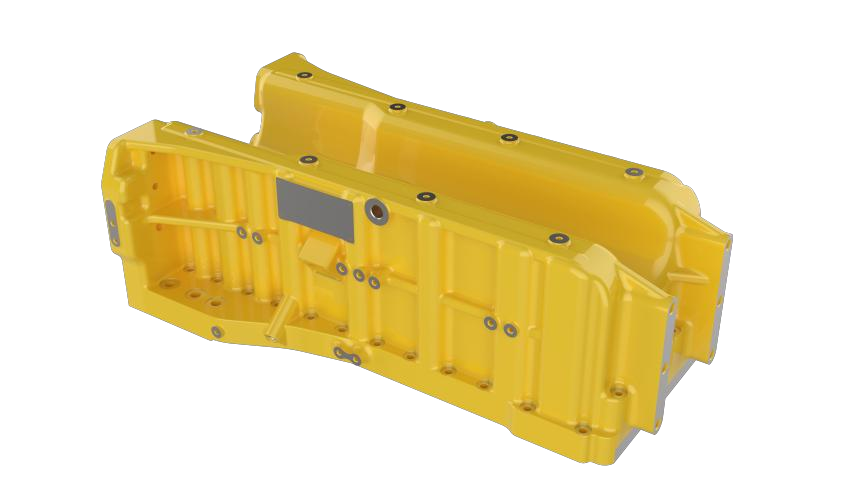

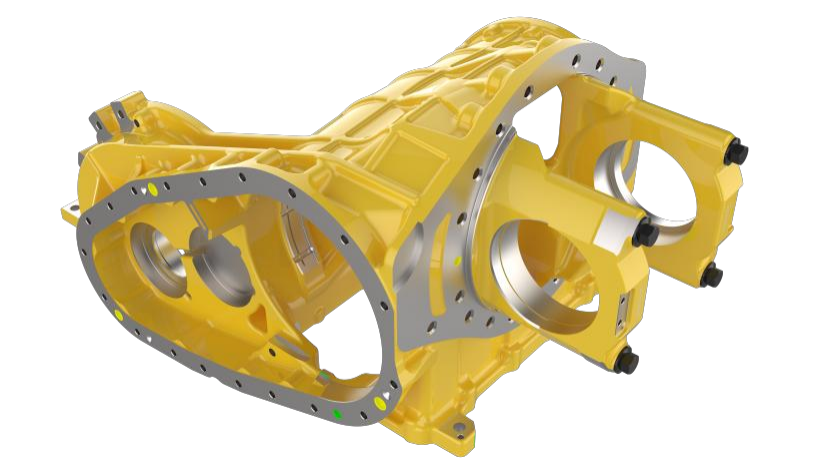

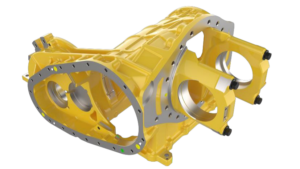

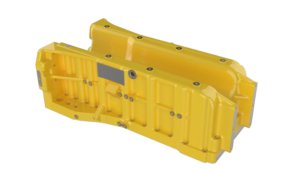

◆ Suitable for mold, non-ferrous metals, composite materials, steel, aluminum and other symmetrical, asymmetric products punching, milling, boring, rigid tapping, etc.
◆ It is widely used in rail transit, automobile, aviation, wind power and construction machinery industries.
|
|
|
| Model | HW-1510-800A | Optional | |
| Travel | X-axis travel | 1500mm | 1500-25000 |
| Y-axis travel | 1000mm | 1000-2000 | |
| Z-axis travel | 800mm | 800-1200 | |
| W-axis | Optional | Optional 500-1200 | |
| Spindle | Power | 18kw | 12kw-54kw |
| Speed | 6000r/min | 12000 | |
| Taper | BT50 | BT40/HSK100A | |
| Operating system | SIEMENS | HEIDENHAIN, FANUC, FAGOR, SYNTEC, HNC | |
| Tool changer | 24T | 8/16/24/32/40/60 | |
Optional:
◆ Grating scale
◆ Suction system
◆ Tool checking instrument
◆ Chip conveyor outside machine
◆ Tool water cooling system
